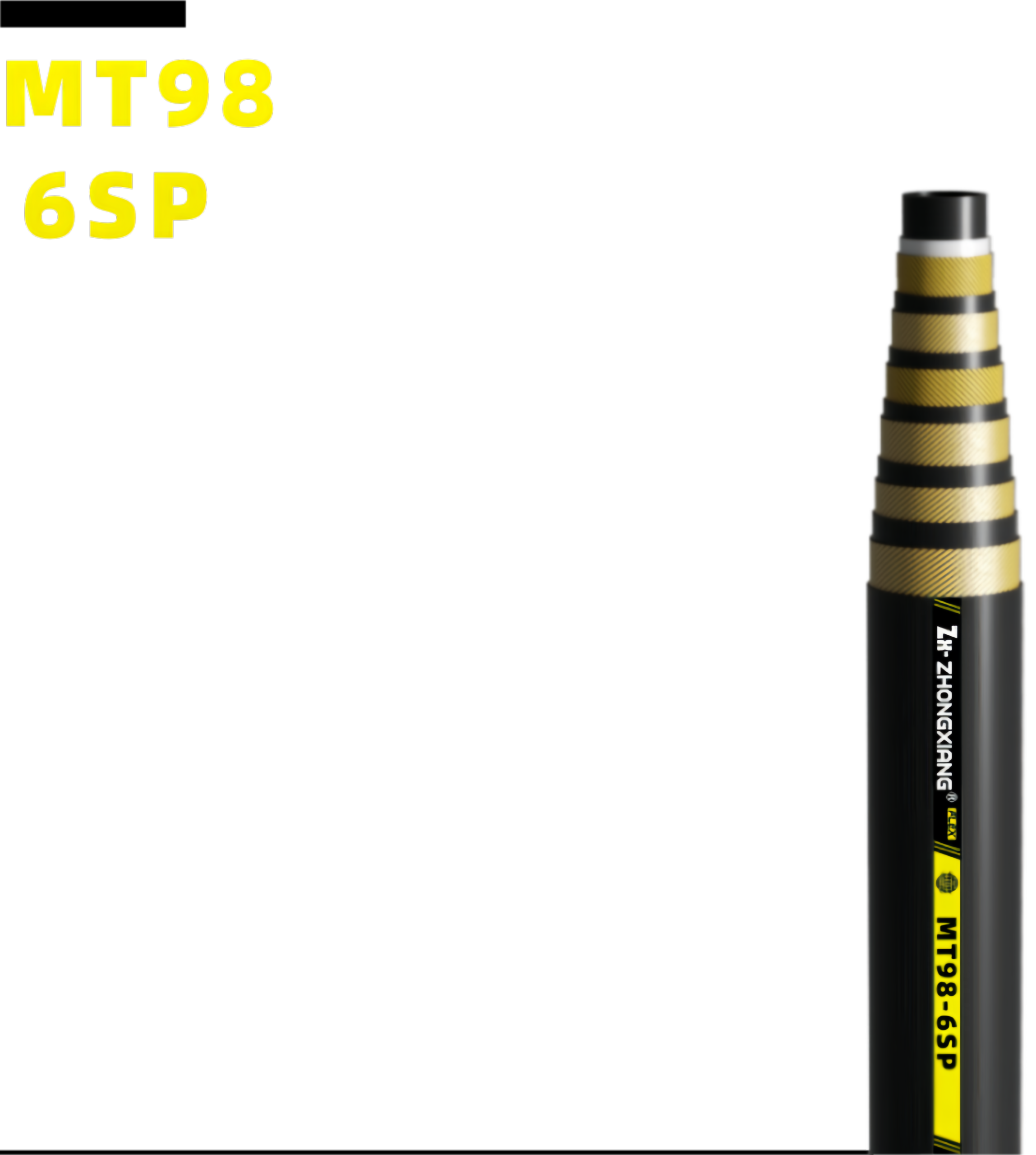

MT98-6SP Wire Spiral Hydraulic Rubber Hose for Mining (6 Layers)
Product Overview
The MT98-6SP is an ultra-heavy-duty hydraulic hose featuring a robust six-layer intertwined steel wire construction. Meticulously engineered for the rigorous and high-pressure demands of the mining industry, it provides extreme burst resistance and durability. It is the optimal cost-effective solution for massive coal mine hydraulic supports and comprehensive coal mining units requiring reliable fluid power transmission.
Technical Specifications
- Application: High-pressure hydraulic systems such as coal mine hydraulic supports and comprehensive coal mining units. Designed to safely transport mineral oil, water-based hydraulic oil, or water.
- Inner Tube: Synthetic Rubber
- Reinforcement: Six layers of intertwined high-strength steel wires (6-wire spiral)
- Cover: Synthetic Rubber (Weather, oil, and abrasion resistant)
- Temperature Range: -40°C to +100°C (-40°F to +212°F)
- Applicable Standards: GB/T 10544, MT98, MA coal safety certification, and US MSHA certification
- Safety Factor: 4:1 (Except for specific sizes as tested)
Technical Data Sheet
| Size | I.D. Min (mm) |
I.D. Max (mm) |
W.D. Min (mm) |
W.D. Max (mm) |
O.D. Min (mm) |
O.D. Max (mm) |
Max W.P. (Mpa) |
Test Pressure (Mpa) |
Min B.P. (Mpa) |
Min B.R. (mm) |
Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/8-6 | 9.7 | 10.5 | 20.0 | 22.0 | 24.0 | 26.0 | 80.0 | 120.0 | 240.0 | 180 | 1.40 |
| 1/2-6 | 12.7 | 13.5 | 23.8 | 25.8 | 28.5 | 30.5 | 72.0 | 108.0 | 216.0 | 210 | 1.74 |
| 5/8-6 | 15.7 | 16.6 | 28.0 | 30.0 | 31.5 | 34.5 | 70.0 | 105.0 | 204.0 | 260 | 2.10 |
| 3/4-6 | 18.7 | 19.8 | 32.0 | 34.0 | 35.5 | 38.5 | 60.0 | 90.0 | 180.0 | 280 | 2.23 |
| 7/8-6 | 21.7 | 22.8 | 35.0 | 37.0 | 39.5 | 42.5 | 53.0 | 80.0 | 160.0 | 320 | 2.80 |
| 1-6 | 24.7 | 25.8 | 38.0 | 40.0 | 42.5 | 45.5 | 50.0 | 75.0 | 152.0 | 360 | 3.18 |
| 1-1/4-6 | 31.6 | 32.6 | 46.0 | 48.0 | 50.5 | 53.5 | 41.0 | 62.0 | 124.0 | 460 | 3.80 |
| 1-1/2-6 | 37.7 | 38.8 | 52.8 | 54.8 | 57.5 | 60.5 | 36.0 | 54.0 | 108.0 | 560 | 4.39 |
| 1-3/4-6 | 44.7 | 45.8 | 59.8 | 61.8 | 64.5 | 67.5 | 32.0 | 48.0 | 96.0 | 640 | 5.02 |
| 2-6 | 50.5 | 52.0 | 66.2 | 68.2 | 71.5 | 74.0 | 32.0 | 48.0 | 96.0 | 720 | 5.98 |
