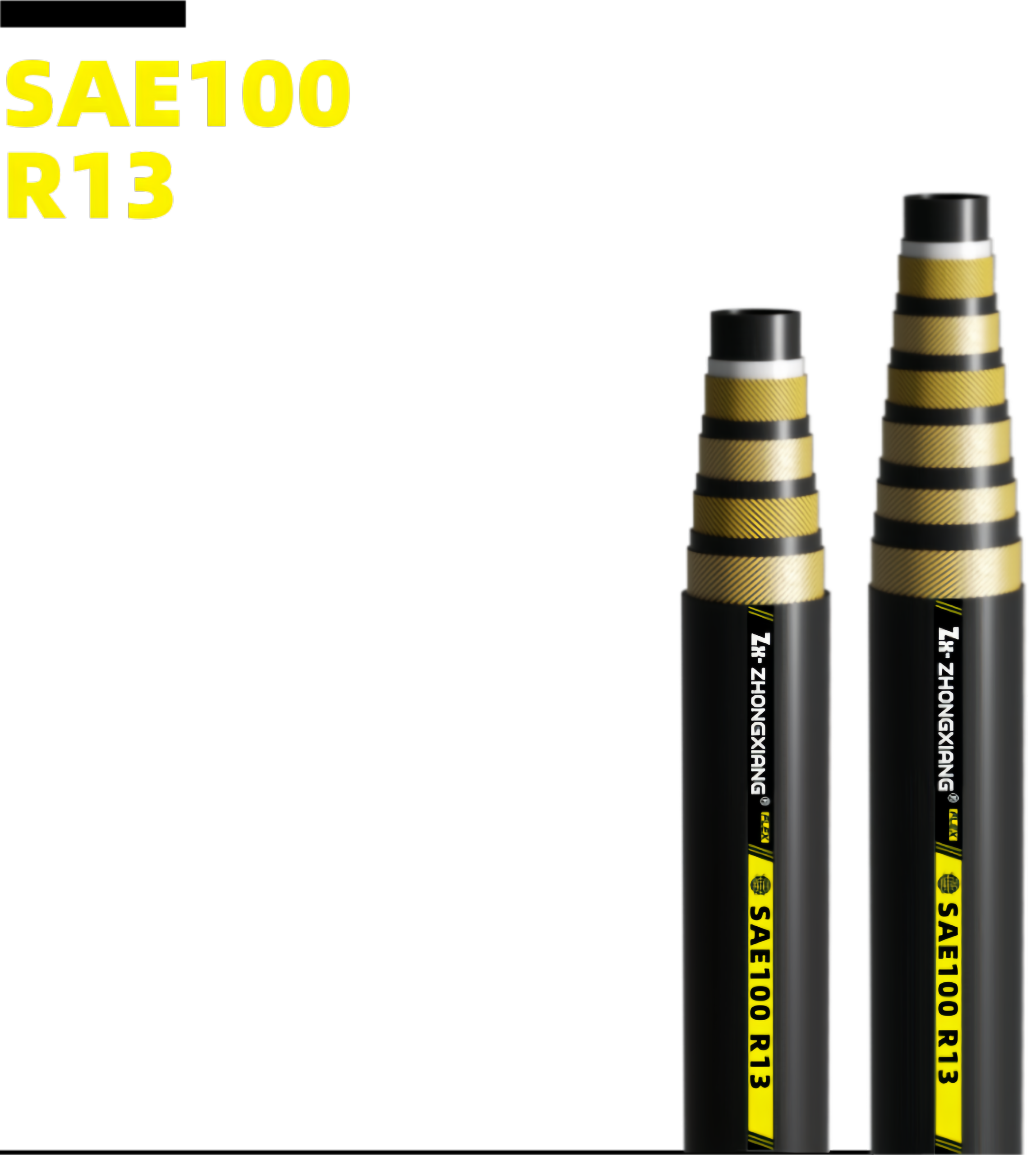

SAE 100 R13 Hydraulic Hose
Product Overview
The SAE 100 R13 is a constant high-pressure, multi-spiral hydraulic hose engineered for the most demanding heavy-duty applications. Designed to withstand severe pressure surges and continuous flexing, it features a 4-wire or 6-wire spiralled construction depending on the size. This cost-effective and highly durable hose is the ultimate choice for construction equipment, mining machinery, and the high-performance industrial market.
Technical Specifications
- Application: High-pressure applications subject to surge or flexing, such as construction equipment, mining, and the high-performance industrial market.
- Inner Tube: Synthetic Rubber
- Reinforcement: Four alternating layers of spiralled high-tensile steel wire (sizes 3/4″ and 1″) and six alternating layers of spiralled high-tensile steel wire (sizes 1-1/4″, 1-1/2″, 2″, and 2-1/2″).
- Cover: Synthetic Rubber (Weather, oil, and abrasion resistant)
- Temperature Range: -40°C to +121°C (-40°F to +250°F)
- Applicable Standards: GB/T 10544 R13, EN 856 R13, SAE J517 R13, MT 98, Certificate of MA, US MSHA, and SAE J1942 / U.S. Coast Guard
- Safety Factor: 4:1
Technical Data Sheet
| Product Number |
Hose ID (mm) |
Hose ID (in) |
Min ID (mm) |
Max ID (mm) |
W.D. Min (mm) |
W.D. Max (mm) |
C.O.D. Min (mm) |
Max W.P. (Mpa) |
Max W.P. (Psi) |
Min B.R. (mm) |
Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R13-12-19 | 19 | 3/4 | 18.6 | 19.8 | 28.2 | 29.8 | 33.2 | 35.0 | 5100 | 240 | 1.55 |
| R13-16-25 | 25 | 1 | 25.0 | 26.4 | 34.9 | 36.4 | 39.8 | 35.0 | 5100 | 300 | 2.01 |
| R13-20-32 | 31.5 | 1-1/4 | 31.4 | 33.0 | 45.6 | 48.0 | 51.3 | 35.0 | 5100 | 420 | 3.84 |
| R13-24-38 | 38 | 1-1/2 | 37.7 | 39.3 | 53.1 | 55.5 | 58.8 | 35.0 | 5100 | 500 | 5.05 |
| R13-32-51 | 51 | 2 | 50.4 | 52.0 | 66.9 | 69.3 | 72.7 | 35.0 | 5100 | 630 | 6.98 |
| R13-40-63 | 63.5 | 2-1/2 | 63.1 | 65.1 | 81.3 | 84.3 | 89.0 | 35.0 | 5100 | 760 | 9.25 |
