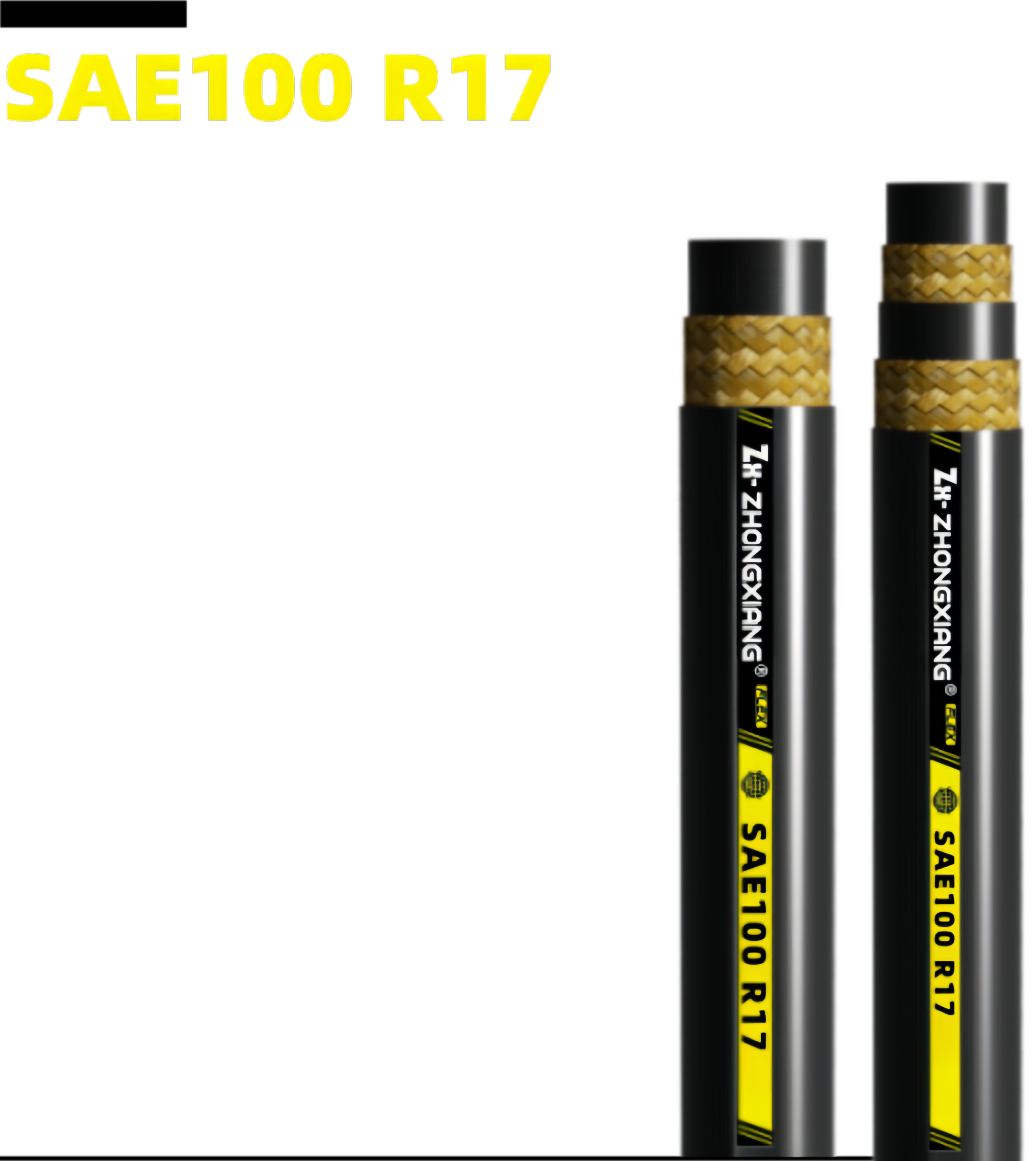

SAE 100R17 Hydraulic Hose
Product Overview
The SAE 100R17 is a highly flexible, constant-pressure hydraulic hose featuring a compact design. Regardless of the hose size, it maintains a constant maximum working pressure of 21 MPa (3000 PSI). Engineered with a significantly smaller bending radius, it is the ideal cost-effective solution for high-pressure hydraulic transmission applications, specifically designed to replace standard 100R1 hoses in mechanical assemblies where routing space is highly restricted.
Technical Specifications
- Application: High-pressure hydraulic transmission applications and situations where it replaces 100R1 high-pressure hoses and requires a smaller bending radius.
- Inner Tube: Synthetic Rubber
- Reinforcement: According to the hose design, one or two layers of braided high-strength steel wire.
- Cover: Synthetic Rubber (Weather, oil, and abrasion resistant)
- Temperature Range: -40°C to +100°C (-40°F to +212°F)
- Applicable Standards: SAE J517 100R17, ISO 11237 R17, and US MSHA certification
- Safety Factor: 4:1
Technical Data Sheet
| DASH | Size (in) |
Min I.D. (mm) |
Max I.D. (mm) |
Min O.D. (mm) |
Max O.D. (mm) |
Cover Thick Min (mm) |
Cover Thick Max (mm) |
Max W.P. (MPa) |
Max W.P. (Psi) |
Test Pres. (MPa) |
Min B.P. (MPa) |
Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| -4 | 1/4 | 6.2 | 7.0 | 11.0 | 13.2 | 0.8 | 1.5 | 21.0 | 3045 | 42.0 | 84.0 | 0.20 |
| -5 | 5/16 | 7.7 | 8.5 | 13.0 | 15.0 | 0.8 | 1.5 | 21.0 | 3045 | 42.0 | 84.0 | 0.24 |
| -6 | 3/8 | 9.3 | 10.1 | 15.0 | 17.0 | 0.8 | 1.5 | 21.0 | 3045 | 42.0 | 84.0 | 0.29 |
| -8 | 1/2 | 12.3 | 13.5 | 18.8 | 21.1 | 0.8 | 1.5 | 21.0 | 3045 | 42.0 | 84.0 | 0.35 |
| -10 | 5/8 | 15.5 | 16.7 | 23.6 | 25.9 | 0.8 | 1.5 | 21.0 | 3045 | 42.0 | 84.0 | 0.74 |
| -12 | 3/4 | 18.6 | 19.8 | 27.7 | 30.3 | 0.8 | 1.5 | 21.0 | 3045 | 42.0 | 84.0 | 0.89 |
| -16 | 1 | 25.5 | 26.4 | 35.6 | 38.6 | 0.8 | 2.2 | 21.0 | 3045 | 42.0 | 84.0 | 1.12 |
