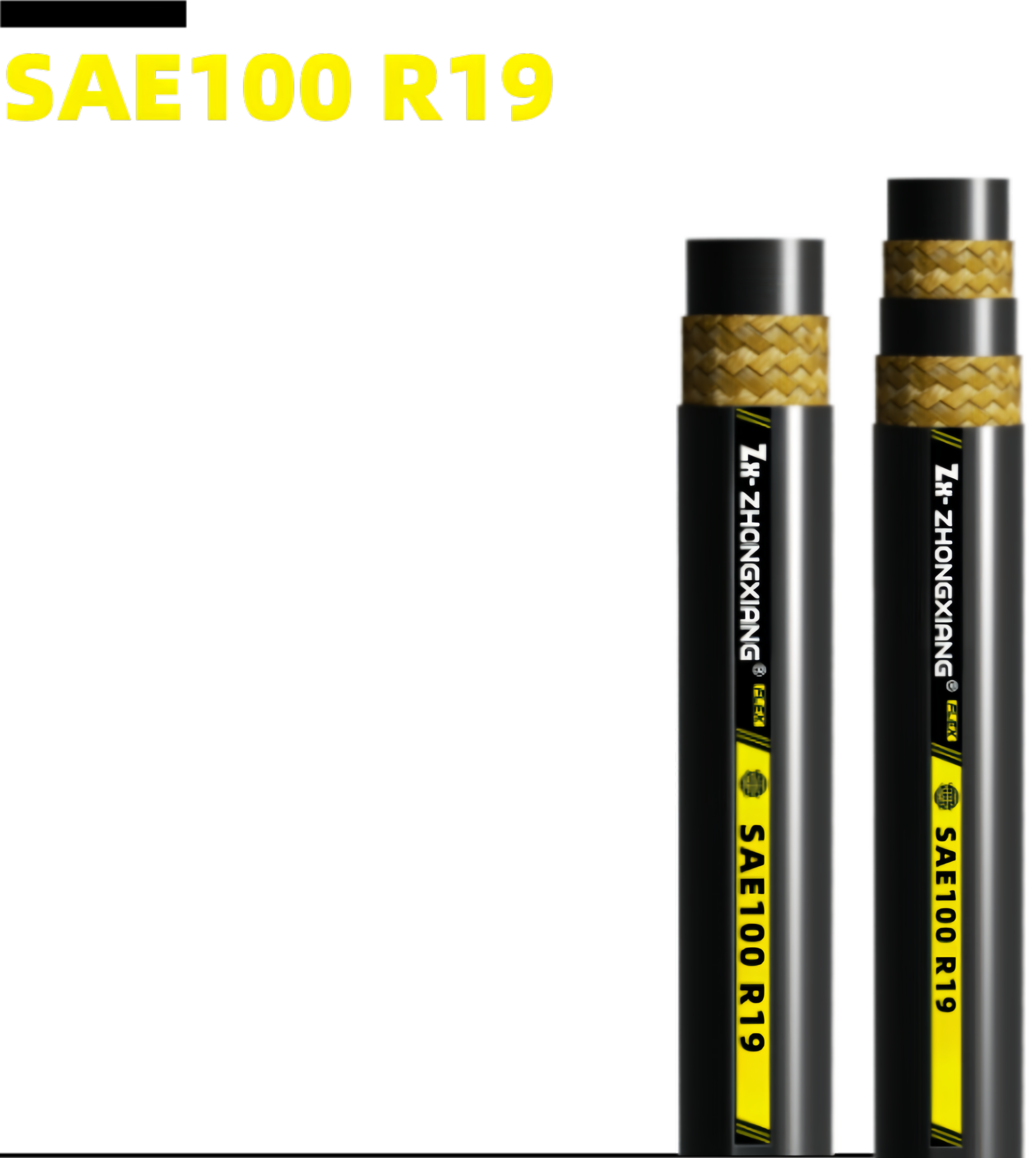

SAE 100R19 Hydraulic Hose
Product Overview
The SAE 100R19 is a compact, highly flexible hydraulic hose engineered to deliver a constant maximum working pressure of 28 MPa (approx. 4000 PSI) across all sizes. Designed with a significantly smaller bending radius and a reduced outer diameter, it is the ideal cost-effective solution for tight-routing mechanical applications, safely transmitting petroleum-based or water-based hydraulic fluids where traditional hoses cannot fit.
Technical Specifications
- Application: Designed for hydraulic systems requiring a smaller bending radius and a compact footprint. Ideal for transmitting petroleum-based or water-based hydraulic fluids.
- Inner Tube: Oil-resistant synthetic rubber
- Reinforcement: One or two braids of high-tensile steel wire
- Cover: Black smooth or black corrugated, oil, weather, and abrasion-resistant synthetic rubber
- Temperature Range: -40°C to +100°C (-40°F to +212°F)
- Applicable Standards: SAE J517 100R19, ISO 11237 R19, and US MSHA certification
- Safety Factor: 4:1
Technical Data Sheet
| Part Number |
Size (in) |
Min I.D. (mm) |
Max I.D. (mm) |
Min O.D. (mm) |
Max O.D. (mm) |
Cover Thick Min (mm) |
Cover Thick Max (mm) |
Max W.P. (MPa) |
Max W.P. (Psi) |
Test Pres. (MPa) |
Min B.P. (MPa) |
Weight (kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R19-03 | 3/16 | 4.6 | 5.4 | 10.8 | 12.7 | 0.8 | 1.5 | 28.0 | 4060 | 56.0 | 112.0 | 0.12 |
| R19-04 | 1/4 | 6.2 | 7.0 | 12.4 | 14.4 | 0.8 | 1.5 | 28.0 | 4060 | 56.0 | 112.0 | 0.17 |
| R19-05 | 5/16 | 7.7 | 8.5 | 14.2 | 16.3 | 0.8 | 1.5 | 28.0 | 4060 | 56.0 | 112.0 | 0.21 |
| R19-06 | 3/8 | 9.3 | 10.1 | 16.0 | 18.0 | 0.8 | 1.5 | 28.0 | 4060 | 56.0 | 112.0 | 0.25 |
| R19-08 | 1/2 | 12.3 | 13.5 | 20.4 | 22.6 | 0.8 | 1.5 | 28.0 | 4060 | 56.0 | 112.0 | 0.47 |
| R19-10 | 5/8 | 15.5 | 16.7 | 25.9 | 27.5 | 0.8 | 1.5 | 28.0 | 4060 | 56.0 | 112.0 | 0.59 |
| R19-12 | 3/4 | 18.6 | 19.8 | 29.7 | 32.5 | 0.8 | 1.5 | 28.0 | 4060 | 56.0 | 112.0 | 0.78 |
| R19-16 | 1 | 25.0 | 26.4 | 37.0 | 39.4 | 0.8 | 1.6 | 28.0 | 4060 | 56.0 | 112.0 | 1.46 |
